■About LEGACY RS type R & type RA
There may be many people who do not know first generation
Legacy RS "typeＲ" & "typeRA"
●RS-Ｒ
The debut of first Legacy was the end of January,
1989 (February 1 release). The turbo car was only sedan RS of
5MT at first.
In October, the same year, RS-R is added in accordance with
a debut of GT which is a turbo car of a wagon (and 4AT version
of sedan RS).
It is written with "a basic grade model of RS which is
suitable as the material of a competition car for motor sports"
and a new car commentary book.

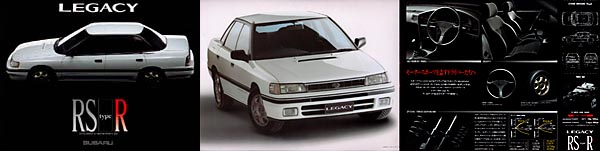

RS-R、Ａtype
●RS-ＲA
In November, '89 (December 1 release), pure competition
car base for motor sports, RS-RA of a STi tune appear.Therefore
the position of RS-R became considerably vague debut two months
later.
It is written with a new car commentary book with "the
order production RA memory model that executed engine fine-tuning
same as the challenge car that 100000km speed records RS-R in
a base."
RA seems to mean, 100000km speed record challenge "RECORD
ATTEMPT" instead of RA of Rally.
(There is an opinion that RA means "Race groupA")
RS-RA put a fine tune to a rally and a dirt trial competition
to be based on RS-R more.
As for the engine, forging piston and high resist pressure
connecting rod metal are built in, and, as for the intake port
and exhaust port, it is revised gap and polished up.
A crankshaft and the flywheel which got of balance are mounted
the car with.If it is a beginner's class level, suspension is
strengthened to the rank who can participate as it is.Variable
ratio power steering is important, too.As for this, the steering
gear ratio becomes quick.
Without close ratio transmission, it was announced as 100-limited
model at first.Actually, seem to have continued job-order production
of 20 monthly productions.
Long-awaited close ratio transmission was carried than a B type
from May, '90, and increased with a catalogue model.
Engine specifications do not change from a latter period
model C type, but ECU becomes 16bit, and a torque up in middle
low rev .(be said by an emission control that became mild) and
continued to exist to the last D type, and handed over a duty
of RA of legacy to impreza WRX-RA with full model change-over,
and the grade of RA disappeared from legacy.

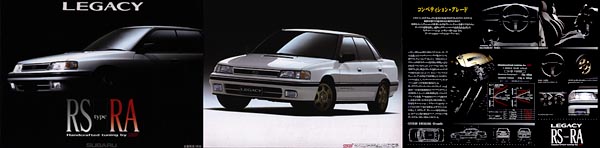

↑100 limitation,A-type

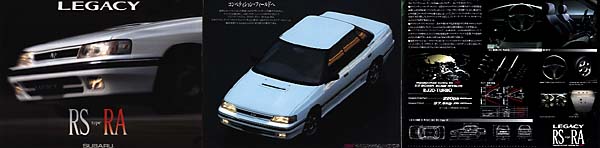

↑close ratio transmission, B-type

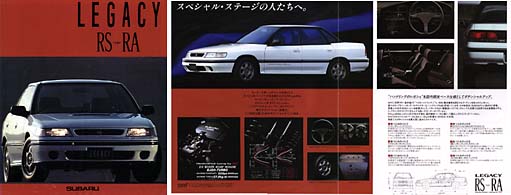

↑After minor change model C-type

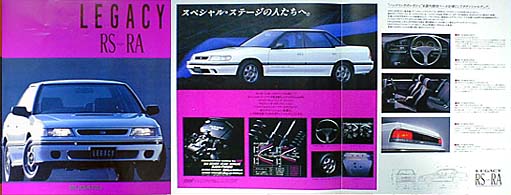

↑Last model D-type
Engine
RS-R
The engine & Transmissions are the same as RS.
RS-RA
based on RS-R and handcrafted RA tuning same as 100000km
speed record car（RA：RECORD ATEMPT）
- crank shaft, flywheel and clutch cover hand finish balance
- induction system（cylinder head、intake manifold） hand finish
repair gaps and polishing
- A gold Alumite treatment surface cam cover
- A intake mani-fold decoration cover abolition
- An inter air conditioner case special color
- A forging piston
- forging kelmet high resist pressure connecting rod metal
- A double radiator electric fan
- close ratio transmission from B type

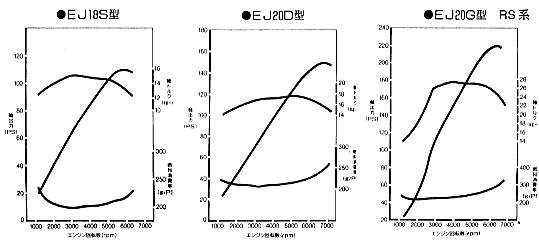

engine performance curve

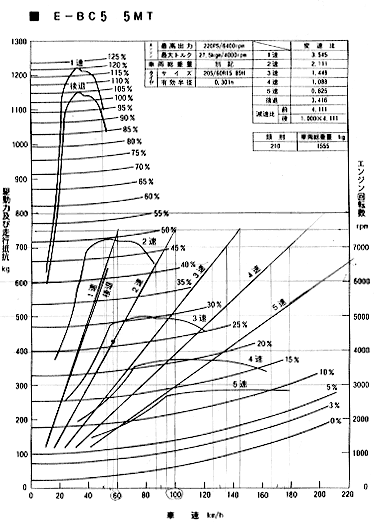

→ Traveling performance curve of
RS
|
GT |
RS |
Maximum power PS/rpm
Maximum torque kg・ｍ/rpm |
200/6000
26.5/3600 |
220/6400
27.5/4000 |
Turbine
rotor diameters（in/out）
compressor Impellers diameters（out/in）
Maximum boost pressure
Intercept point
number of blade |
52.5/43.0
56.0/41.2
450mmHg
2400rpm
9 |
52.5/46.5
56.0/45.0
←
2800rpm
10 |
■CHASSIS
●RS-R
- Hardened coil spring,damper and bush(equal with STi product)
(except rear differential mount, trailing arm rear side, a stabilizer)
- Adoption of three spoke steering MOMO "COBRA"
- Adoption of an advan "GROVA" high grip tire
- The abolition of steering assist power change over switch
●RS-RA
Difference with RS-R
- A variable quick power steering
gear ratio In going straight：15
(over all) In full steering ：13
- Hardened coil spring、 damper
The level that can just participate in an intermediate class
rally
Hardened bush(equal with STi product)
(except rear differential mount, trailing arm rear side, a rear
stabilizer)
Suspension
|
GT
SEDAN |
GT
WAGON |
RS |
RS-R |
RS-RA |
Spring rate
（kg/mm） |
Ｆ
Ｒ |
？
？ |
2.5-2.8 2.3 |
2.51
1.89 |
2.63
2.17 |
3.2
2.85 |
Damper damping force
（pull/push 0.3m/sec） |
Ｆ
Ｒ |
126/31
82/25 |
126/31 82/25 |
146/97 112/74 |
190/140 130/85 |
Stabilizer
（external diameter-mm） |
Ｆ
Ｒ |
17？
19？ |
18
18 |
17
19 |
■Body color
| Apride
model→ |
A |
B |
C |
D |
| RS-R |
Ceramic white#57
Dark blue#56 |
Ceramic white#57
Indigo blue-M#13
Black mica#52 |
|
|
| RS-RA |
Ceramic white#57 |
Ceramic white#57 |
Feather white#30 |
Feather white#30
Black mica#52 |
This time,English translation to this place...
■ボデー
●RS-R
RSとの相違点
装備の簡素化、軽量化のため、以下の部品を廃止または変更
- 廃止部品
パワーウィンドウ、集中ドアロック、パワーアンテナ、リアワイパ、リアスポイラ（オプション）、アンダスポイラ、マフラカッタ、タイヤチェーン、イグニッションキー照明、リモコンミラー
- 変更部品
スモークガラス→ブルー化
カラードミラー→黒色化
空調スイッチ（プッシュ式）→レバー式化
フロアマット（最上級カットパイル）→ニードルカーペット化
ルーフトリム（トリコット）→塩ビ化
サンバイザ（モールド）→塩ビ化
●RS-RA
RS-Rとの相違点
- 廃止部品
ラジオ、スピーカ、トランクマット、アンダーコート
- Handcrafted Tuning by STIマーク（フロントドア下部）
- ヘッドランプ強化
バルブを60/55Ｗ→100/80Ｗに変更
- アンダーガード標準装着！
●Ｂタイプからの変更
- 集中ドアロック、パワーウィンドゥ用ハーネス装備（オプションで装着可能になった）
シート生地、クッション変更
（見た目はあまり変わらないがランバーサポート皆無の腰痛シートから改良されらしい）
- フロントグリル銀塗装からメッキ化（RS）
- リアワイパー、集中ドアロック装備、フロントグリルボディ色化（RS-R）
- クロスミッション搭載、フロントグリルボディ色化（ホワイト枠）（RS-RA）
●Ｃタイプからの変更
RS-R廃止
- 外装フェイスリフト（全車）
- 後席3点式ELRシートベルト（2名分）（RS系）
- シートデザイン変更（全車？）
- インタークーラーブラック塗装化（ターボ全車）
- ECU（コンピューター）16ビット化（ターボ全車）
- パワステクーリングパイプ、パワステポンプ温度？センサー追加（ターボ全車）
- クラッチペダルASSY、シフトフォーク変更（異常に重い踏力改良、ターボMT全車）
●Ｄタイプからの変更
|
